Measurement & Inspection

Measurement and inspection is critical to any quality control process. In addition to the time-served standards of quality surface table and convention measuring equipment such as micrometers, depth gauges, callipers and so on we utilise the latest 3D scanning equipment combined with industry-leading verification software, Polyworks.

We will choose the measurement method best fitting the process – whether that is a manual measurement using slip gauges, probing or 3D scanning – and then apply that in a logical way to create a report that supports your or your customer’s quality processes – for example PPAP.

‍

Laser Scanning and Other Methods of Inspection

Through our scanning technology we frequently reverse engineer parts where tooling made by other providers has been lost or damaged. We can scan, reverse engineer, design the tool, machine and vac form (in-house) in approximately 4 days.

‍

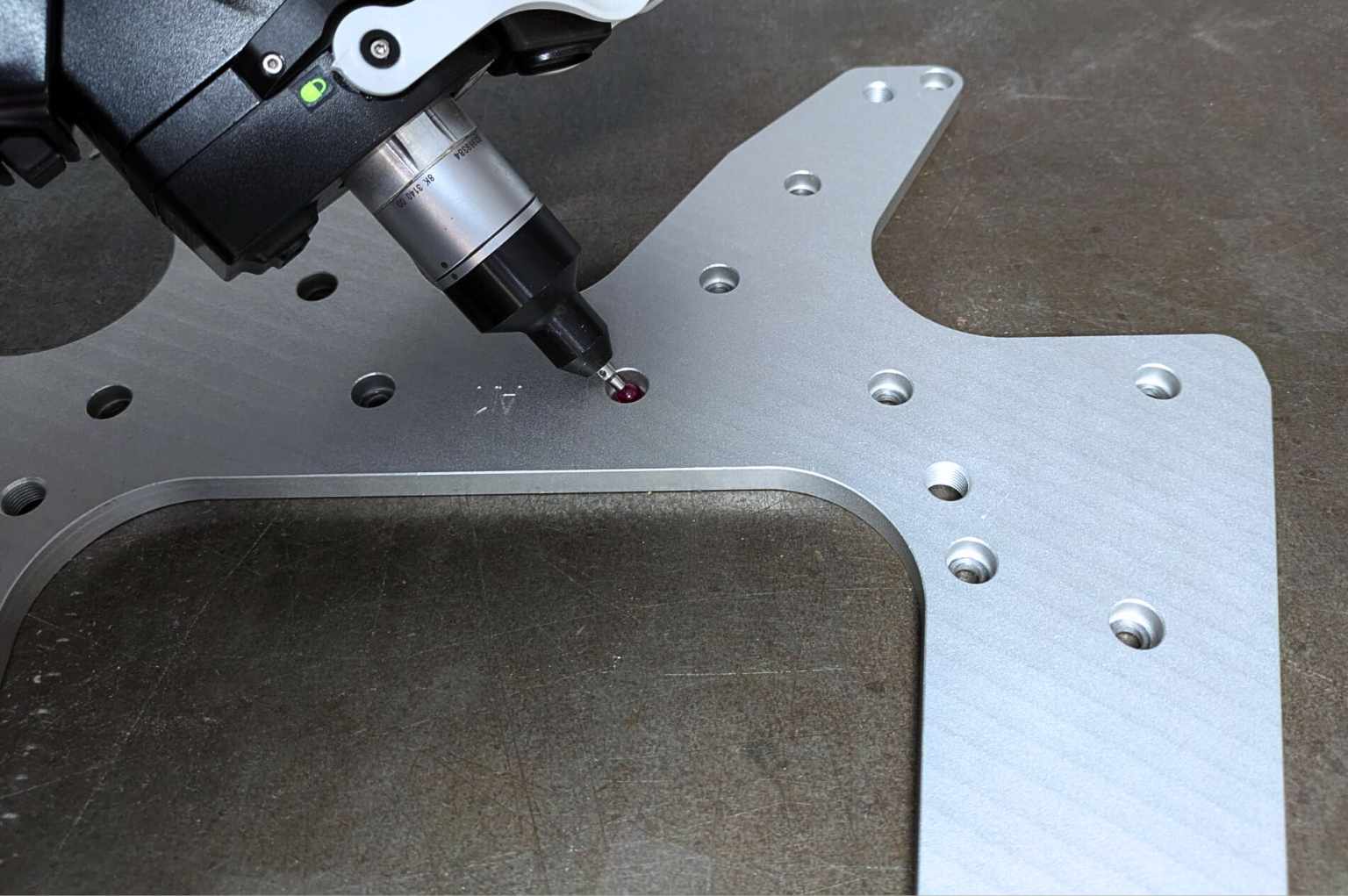

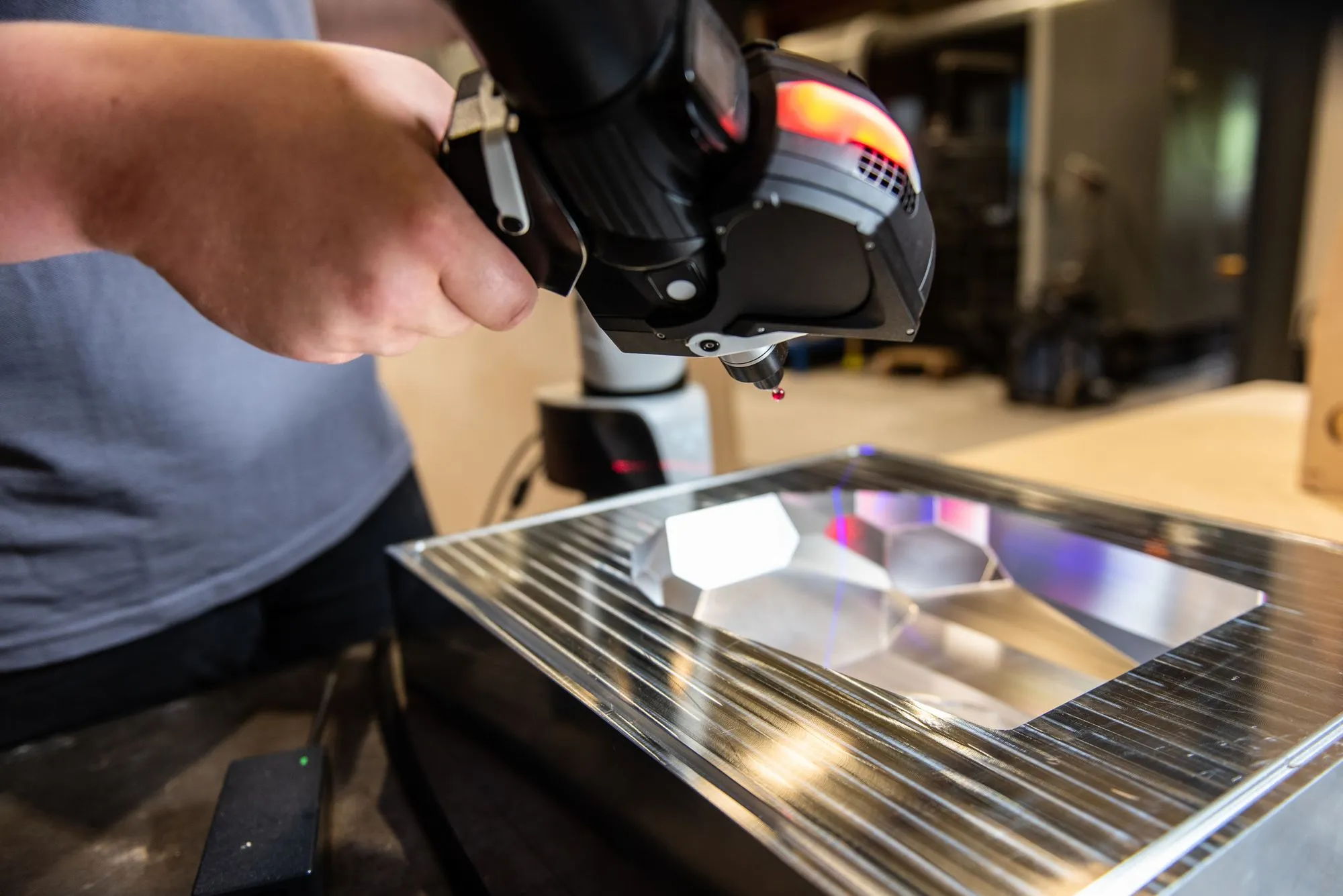

We have both a fixed Carl Zeiss scanner and a 7 axis Hexagon arm (sometimes generically referred to as a “Faro” arm). This allows us to scan anything from extremely small details right up to large sweeping surfaces. We can comfortably scan and report on / reverse engineer parts up to 3m long.

‍

Scanning creates what is referred to in the industry as a mesh file (STL). It is our ability to work with this mesh file to either recreate proper surface CAD models that can be used for manufacture or tooling that sets us apart. Just scanning is not enough, it needs to be coupled with real skill and intelligence to create CAD models from the scan data that can be worked with.

‍

Measurement & Inspection

Measurement Reporting

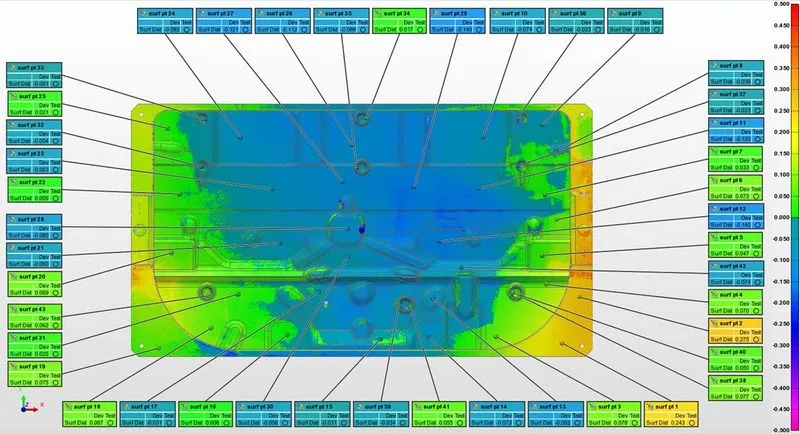

Alongside our scanning technology we also provide verification reports using the industry standard Polyworks Inspector. Our reporting (often generically referred to as CMM reports) are designed to be user-friendly and easy for anybody to understand, not just someone with a measurement background.

‍

Reports are provided to support reverse engineering, identifying deviations between components, if an average needs to be taken. Fixtures and mould tools can be verified to demonstrate accuracy to a customer-defined tolerance.

We’ve been designing, machining and delivering thermoform tooling for 30 years and constantly reinvest in our capability to ensure we
stay ahead.
